KHE + Two Notes Captor (X)
This guide explains to how to use the Two Notes Audio Reload Captor (or Captor X) in combination with the KHE Amp / Cab Switcher. Make sure to read this guide and all product manuals in great detail before hooking things up. If incorrectly connected or used, the equipment may be damaged. Better be safe than sorry!
The Two Notes Captor with the KHE allows for two main operation modes:
Silent Operation If the Captor is mainly used as a load box in silent mode, it is best connected to a red KHE Cabinet Output jack, to use it as a load with no speaker connected.
Attenuator Operation If the Captor is manly used as an attenuator to lower the volume of the amps, it is best connected to the KHE’s Attenuator Insert Loop, which allows to use it as an master attenuator for all amps and cabs on the KHE. The black standard Captor has a fix -20dB attenuation, the white Captor X has switchable 0dB (bypass) -20dB and -38dB attenuation. Connected like this, it can also be used as a load box for silent operation by unplugging one cable. But more more on that later.
In all scenarios, it is possible to use the line out of the Captor with an audio interface for recording and IR processing. All functions of the Two Notes Captor (X) can be used as normal with the KHE amp switcher.
Wiring & Setup
Important: Before connecting the Captor to the KHE, make sure the KHE and all amps and cabs are all working correctly. It’s crucial to be methodical during the setup. Start with the most basic KHE setup possible (only amps+cabs, no pedalboard or attenuator) and add things step by step.

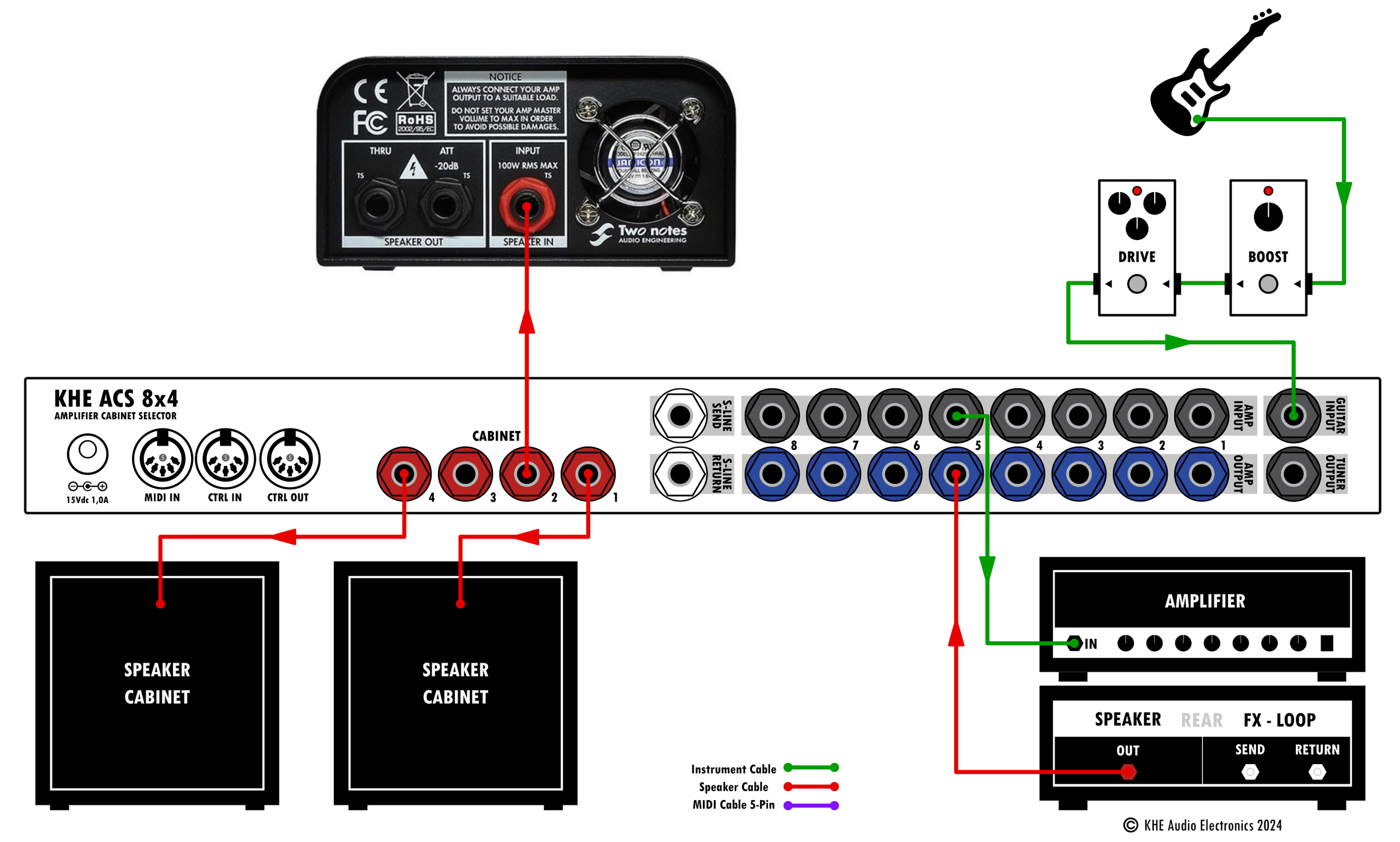

Silent Operation (Load Box Mode)
If the Captor is mainly used as a load box for silent recording, it is best connected to a red KHE Cabinet Output jack. This allows to use it like a normal speaker cabinet with the activated amp on the KHE. Connect the red Captor SPEAKER IN to the red KHE CABINET jack by a speaker cable. Do not connect a cable to the Captor SPEAKER OUTPUT. Doing so would deactivate the internal load box.

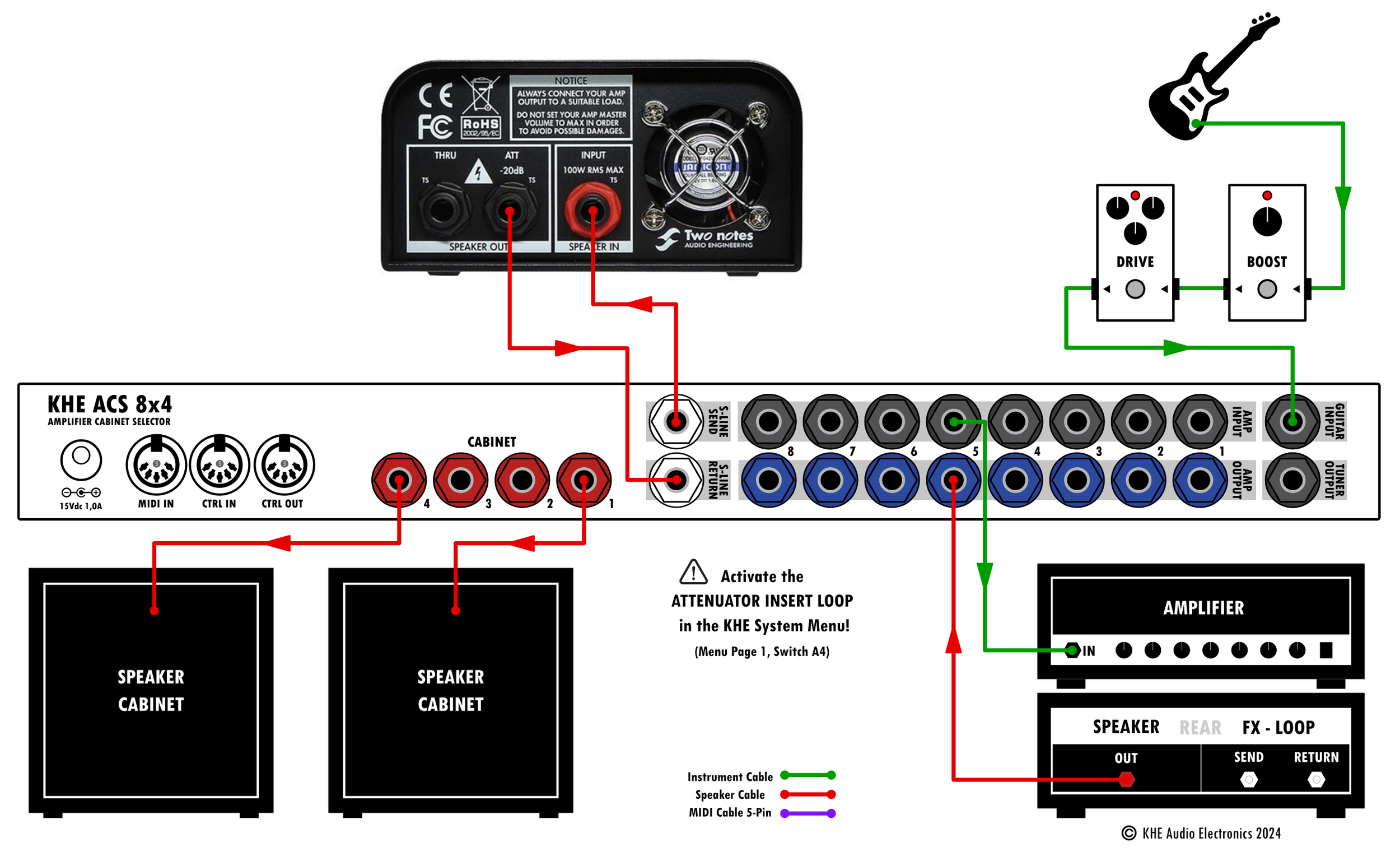

Attenuator Mode
To use the Captor as an global power attenuator, it is connected to the KHE Attenuator Insert Loop. This is a serial insert point between the amp outputs and the speaker cabs. By default, the KHE’s Attenuator Insert Loop is deactivated. If not activated, the attenuator won’t work correctly. See more on that later in this guide.
Connect the red Captor SPEAKER IN jack to the white KHE S-LINE SEND jack by a speaker cable. This sends the amp speaker output signal of the KHE to the input of the Captor.
Connect the black SPEAKER OUT ATT jack to the white KHE S-LINE RETURN jack by a speaker cable. This sends the attenuated amp signal from the Captor back into the cabinet switching section of the KHE.
Power-On the KHE Do not power-on the amps. Turn the master volume of the amps down.
Activate the KHE Attenuator Loop in the System Menu after connecting it. If not activated, the attenuator won’t work correctly. See this link: How to activate the KHE Attenuator Insert Loop
Activate an Amp + Cab on the KHE and slowly increase the volume of the amp and test everything in detail.
The system is now ready to use.
Alternative Operation
Single Cab or Load Box: If the Captor is only used with a single cab, or as a load box with its internal load and no speaker attached, connect it to a red KHE CABINET jack. For the KHE ACS 4x2, this wiring is the only connection variant.
KHE ASX / CSX: Connect the ASX CAB MAIN to the OX Amp Input. Connect the Captor Speaker Output to the CSX Speaker Input. Use speaker cables. See more information in the ASX CSX user manual.
Basic KHE + Captor Operation
Attenuator & Silent Operation
To use the Captor as an attenuator, connect it to the KHE S-Line jacks as shown above and make sure to have the KHE Attenuator Loop activated. On the Captor X, use the 3-way VOLUME switch to select between -38dB, -20db or 0dB attenuation (bypass). The black Captor has a fix -20dB attenuation setting. Use the KHE’s amp and cab switches to freely choose any amp or cab at the push of a switch (no need to stop playing, the KHE takes care of the switching and muting).
The Captor’s Speaker Out is a switching jack: If no cable is plugged in, the internal reactive load box is active. If a cable is plugged it, the load box is deactivated and the external speaker cab is active.
To use the Captor in Silent Load Box mode while it is connected to the KHE Attenuator Loop, unplug the Captor Speaker Out cable. This will disconnect the speaker and activate the internal load box. Make sure to deactivate the amp on the KHE first and to unplug the cable on the Captor side, not on the KHE S-Line return jack! On the KHE, a cabinet must always be activated, but it won’t receive any signal from the attenuator. This setup can be a bit sketchy because it's easy to unplug the wrong cables. While we don't recommend doing it, it is possible. Use it at your own risk.
Alternatively, if the Captor is exclusively used as a load box with no speaker cabs at all, connect it to the KHE’s Cabinet Switching Outputs (red CAB jacks).
Attenuator Bypass
On the Captor X, set the LEVEL switch to 0dB to bypass the Captors and attenuation. The black Captor does not have a attenuator bypass switch and the KHE can also not bypass the attenuator. Deactivating the KHE Attenuator Loop does not bypass the the attenuator. Learn more: ACS Attenuator Loop Guide
Impedance Setting
Match the impedance of the amps and cabs to the captor. Learn more about impedance and mismatch in the KHE Impedance Guide and in the Two Notes Audio - Impedance Selection Guide.
Outputs, USB, MIDI, Phones
All these knobs and features can be used as normal.
Device Position in the Room
In some situations, being close to the attenuator or load box with the guitar can result in a high-pitched squealing noise. This happens due to the high magnetic field generated by the inductors and transformers of the attenuator or load box, causing feedback with the guitar pickups. Try physically separating them and avoid standing too close to the device with your guitar. You can find additional information in this Video by Fryette Amplification and in this Blog Post by Two Notes Audio on the topic. Make sure to provide proper cooling airflow for the attenuator or load box.
Power-On Sequence
All amps + KHE + gear power off > KHE power on > Amp Heads on with standby for 2 minutes > KHE activate AMP > Ready to rock!
Power-Off Sequence
Deactivate KHE Amp+Cab > Amps+Gear power off > KHE power off > Good Night!
Load + Switching Power Rating
The Two Notes Captor (X) reactive load box is rated for 100W RMS. The KHE has a maximum power switching rating of 150W. Do not use amps with more than 100W with the Captor or keep the output volume low. Learn more: KHE Maximum Amp Power Rating and Article by Two Notes Audio
Transistor & Solid-State Amps
The Two Notes Captor (X) and the KHE can safely be used with transistor & solid-state amplifiers (many other attenuators can’t). When using solid-state amps, make sure the maximum output power does not exceed 100W RMS to avoid damage to the Captor. See this Article by Two Notes Audio on the topic.
Activating the KHE Attenuator Loop
The KHE Attenuator Insert Loop can be activated in the KHE System Menu. By default, the attenuator loop is turned off. It needs to be turned on for the attenuator to function properly.
Connect the attenuator to the white KHE S-Line jacks as shown in the diagram. Turn down the volume of the attenuator and the amps.
Power on the KHE. If the attenuator has a bypass switch, set it to active.
Enter the System Menu by pressing the KHE CTRL button for 3 seconds, then release it. The CTRL light starts to blink 1x, indicating “Page 1 - System Functions” is active. “Page 2 - MIDI Menu” would have 2x blinks of the CTRL light. To flip the menu page, short-press the CTRL button. The attenuator loop control is on “Page 1 - System Functions”.
Press Switch AMP 4 to activate the attenuator loop in the System Menu. If the light of amp 4 turns ON, the loop is activated. If AMP 4 light blinks 4 times, it means no attenuator no attenuator was detected by the KHE and the attenuator loop didn't get activated for safety reasons (check the wiring & cables). If the light of amp 4 is off, the loop is deactivated.
Exit and save the System Menu by pressing the CTRL button again for 3 seconds, then releasing it. The CTRL turns red (or green if linked) and the switcher is back in normal switching operation. All settings are saved and will be automatically loaded on the next power-up.
Activate a speaker cab and an amplifier on the KHE. Slowly increase the volume of the amp and the attenuator and verify everything works as intended.
Notes:
The attenuator loop won't turn on if no actual attenuator is connected. The KHE checks the attenuator load resistance, and if it doesn't detect it, the attenuator loop stays inactive for safety (AMP 4 light blinks four times). It's crucial to connect the attenuator before activating the loop.
Turning off the KHE Attenuator Loop doesn't bypass the attenuator itself. The KHE does not have an Attenuator Bypass function. To fully deactivate the attenuator, both disconnect the attenuator cables at the S-Line jacks and disable it in the system menu. It's essential to always deactivate and disconnect the attenuator to prevent potential damage to the KHE, the amps, or the attenuator. If the Attenuator Loop is inactive, the S-Line jacks operate in Link Mode configuration for connecting KHE switchers.
When the KHE powers up, the attenuator loop is only activated if the KHE detects the presence of the attenuator. If the attenuator is not connected or in bypass mode, the attenuator loop remains disabled. All cab lights will blink if the attenuator is missing or in bypass state (new 2024 feature, serial nr B6-xxx or higher).
Therefore, if the attenuator has a BYPASS switch, it's important to set it to 'on/active' before turning on the KHE.
Learn more: ACS Attenuator Loop Guide
Troubleshooting & FAQ
No sound at all / Attenuator isn’t working correctly
Check if the Attenuator Loop is activated in the KHE System Menu.
Maybe it got deactivated because it not connected during power-up (safety feature)?Make sure an amp + cab is activated on the KHE
Double check wiring, it’s easy to mix things up.
Make sure cables are fully inserted & functional.
Downsize system to only amps+cabs with no attenuator or pedals.
Make sure the devices are being operated correctly.
Hum Noise or High-Pitched Squealing Feedback Noise
Is the KHE Attenuator Loop activated? Double-check everything above.
Dynamic Noise: Does the noise change your position in the room? Does it get worse if you move closer to the attenuator or load box? If the noise disappears when turning the guitar volume down, then the noise is most-likely caused by magnetic interference with the (reactive) load device and the guitar pickups. You are standing too close to the device. Move your guitar around to learn how it reacts. Try moving the attenuator or load box a little further away or lower gain and volume as a last resort.
Static Noise: If the noise is still present, even with the guitar volume turned all the way down and not changing with your position in the room, the noise is most-likely caused by a ground loop somewhere. First, check the pedals and the fx-loops. Make sure to use isolated 9V power for the fx-loop to avoid ground loop. Don’t use daisy-chain power adapter cables. Temporary remove the pedals to isolate the problem. If using a noise gate with key input such as the Fortin Zuul, use a splitter with transformer isolation for the key input to avoid ground loop. Keep the pre- and post pedal section ground isolated all the time. Experiment with the Ground Lift Switch settings. Make sure to have an amp activated on the KHE.
Sound or noise coming from inside amp/attenuator/load box
Sound of broken speaker inside the amp: When an amp or load box is pushed hard, it can cause weird noise and sound which kinda sounds like a small broken speaker, coming from inside of the amp or transformers. Fear not! This is normal. The vibrations from the transformer laminations and inductors can create strange distorted sounds, but there's nothing to worry about.
High-pitched squeal coming from inside the amp: Immediately power everything off (KHE, Amps) and verify the correct wiring of the amp. Make sure the cables are fully inserted and in good working shape.
Learn more: KHE Troubleshooting Guide and ACS Attenuator Loop Guide
