The ZMX-1 is an automatic impedance matching device for the KHE ACS amp/cab switchers. It automatically corrects any impedance mismatch between the amps and cabs on the ACS system (speaker-level).

• The ZMX uses a custom 150W auto-transformer for the impedance matching (single-phase multi-tap transformer, made in USA, switched by relays)

• The ZMX is programmed with the impedance value for each amp / cab on the ACS switcher. If not matched, the ZMX automatically matches and corrects the impedance.

• Handles any 16Ω / 8Ω / 4Ω / 2Ω device and also automatically handles uneven values like 5.3Ω, 3.2Ω, 2.6Ω in Dual-Cab Mode (special transformer taps)

• Connects to the ACS Attenuator Loop, so it sits between the amps and cabs. Attenuators can be used too (the ZMX can match one side)

• The ZMX is connected to the ACS CTRL IN port for phantom power and network communication

• Manual Bypass, Auto-Match-Bypass and Transistor-Amp-Bypass modes

• A single ZMX can be used with multiple ACS switchers in a linked setup

• Safe & automatic impedance switching. Never worry about the impedance again!

• No change in tone or dynamics, the ZMX is as transparent as it gets (passive signal path)

• Compatible with any tube amp, solid-state / class-d amps, speaker cabinets, load boxes and attenuators (all mono)

• The ZMX is designed specifically for the KHE ACS and does not work with other amp switchers or without an ACS.

• Size: 24cm x 19cm x 9cm, including 2u rack mounting brackets

• Including 1m red DIN-5 cable for power and network (ACS CTRL IN)

• No power adapter required, it gets phantom-powered by the ACS

• Compatible with all KHE ACS switches that have he CTRL IN port

• 30 day money-back guarantee

• 5 year warranty

• Built in Switzerland

‍ ‍ User Manual (pdf)

Note: If you use the ZMX in a linked ACS Setup, let me know the switcher models in the comment section during checkout. Maybe it requires an additional connection box, which I’ll add for free.

——————————————————

CHF 599.00

Special introduction price - regular CHF 649

Excluding VAT or import taxes. Import duties may apply. Worldwide shipping available. Shipped from Switzerland. Payment by Credit Card or PayPal.

B-Stock Units: In addition to regular units, a small number of units with minor cosmetic blemishes are available. Use code B-STOCK30 to receive CHF 30 off a B-stock unit.

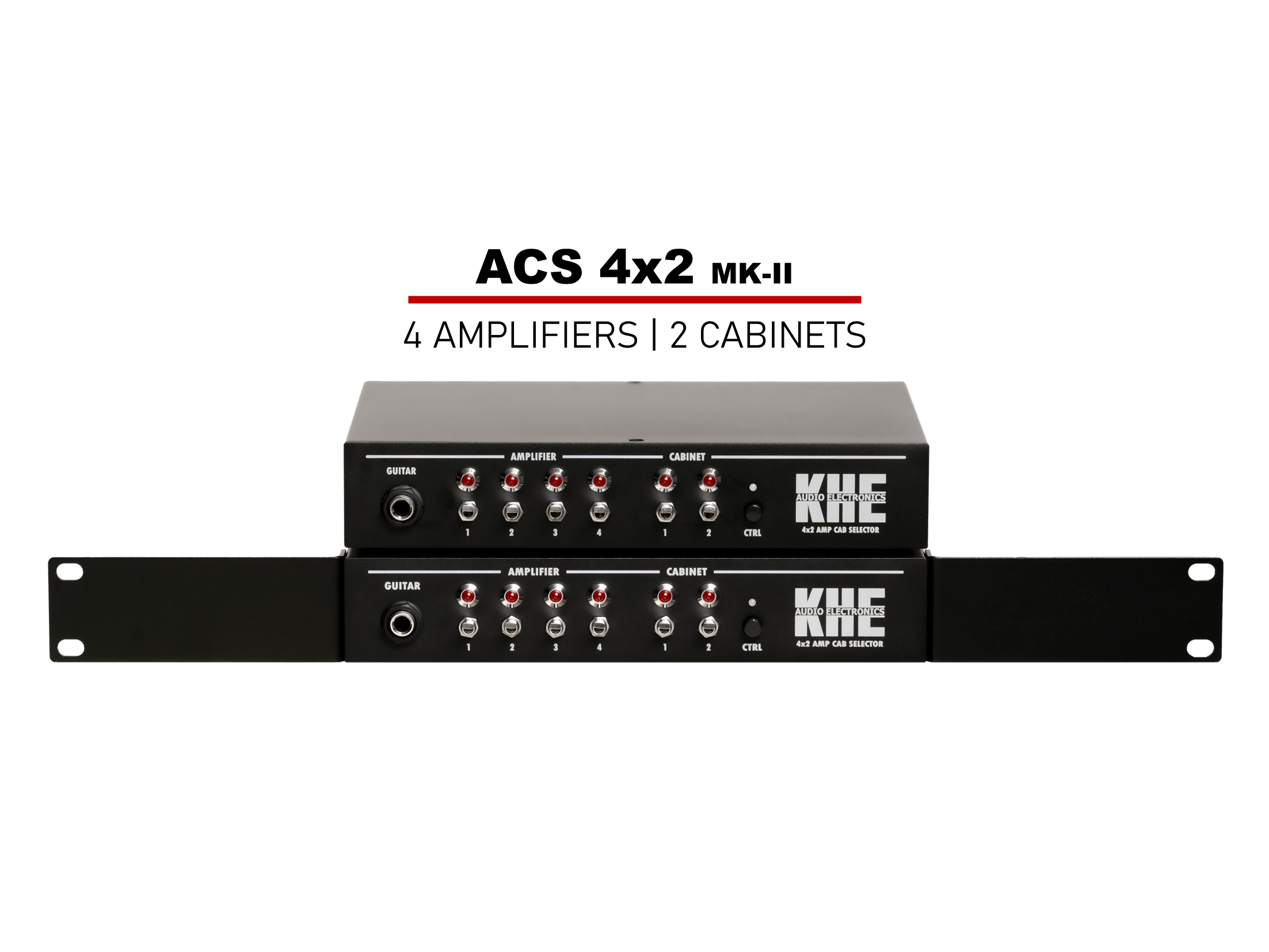

4x2 Switching System for Guitar Amplifiers, Speaker Cabinets and Load Boxes with Attenuator Insert Loop, Dual-Cab Mode, MIDI Control, Link Mode and Rack Mounting Brackets.

• One amp and up to two cabs can be played at time (mono system)

• Safe switching and protected amps by dummy load resistors and advanced safety functions

• Compatible with heads, combos, tube- and solid state amps

• No hum or noise, and no clicks or pops while switching

• Power adapter included, works worldwide

• 30 day money-back guarantee

• 5 year warranty

• Built in Switzerland

‍ ‍ User Manual (pdf)

——————————————————

CHF 749.00

Excluding VAT or import taxes. Import duties may apply. Worldwide shipping available. Shipped from Switzerland. Payment by Credit Card or PayPal.

IN STOCK - READY TO SHIP

If possible, pay by Credit Card (less fees).

The KHE ACS 4x4 enables to switch between 4 guitar amps and 4 speaker cabinets or load boxes. Switch between any combination of amps and cabs instantly with a single push of a switch. No more moving heads around or plugging cables. Instant a/b testing and amp shootouts!

◾ Features: Attenuator Insert Loop, Dual-Cab Mode, MIDI Control
◾ Multiple units can be linked to expand the switching options
◾ One amp and up to two cabs can be active at time
◾ Compatible with heads, combos, tube- and solid state amps
◾ Amps are fully protected by load resistors and advanced safety functions
◾ No hum or noise, and no clicks or pops while switching!
◾ Steel enclosure in 19" one unit rack space (20cm depth)
◾ Power supply included
◾ Professional amp switcher, built in Switzerland
◾ 30 day money-back guarantee

Scroll down for detailed info on the KHE ACS 4x4!


——————————————————

CHF 899.00

Excl. shipping, import taxes and VAT. Import duties may apply on import. Payment in CHF (Swiss Francs) by PayPal or Credit Card. Worldwide shipping out of Switzerland. UPS Express delivery option available.

IN STOCK - READY TO SHIP

If possible, pay by Credit Card (less fees).

4x4 Switching System for Guitar Amplifiers, Speaker Cabinets and Load Boxes with FX-Loop Switching, global Master Volume Control, Attenuator Insert Loop, Dual-Cab Mode, MIDI Control and Link Mode

• Master-FX-Loop Switching: Enables to share effect pedals in the fx-loops of all amps: The fx-send and fx-return of each amp are connected to the ACS. The effect pedals are connected to the global Master-FX-Loop. The ACS now automatically switches the pedal to the activated amp fx-loop. The loop can be true-bypassed for each amp (memory function).

• Master Volume Control: Control & dim the master volume globally for all connected amps (fx-return volume, up to -20dB level reduction)

• These features only works with amp that have their fx-loop connected to the ACS. The ACS can not add a loop for amps that don’t have one.

• One amp and up to two cabs can be played at time (mono system)

• Safe switching and protected amps by dummy load resistors and advanced safety functions

• Compatible with heads, combos, tube- and solid state amps

• No hum or noise, and no clicks or pops while switching

• Linking: Multiple units can be daisy-chained to expand the system

• Full MIDI Control

• Power adapter included, works worldwide

• 30 day money-back guarantee

• 5 year warranty

• Built in Switzerland

‍ ‍ User Manual (pdf)

——————————————————

CHF 1099.00

Special introduction price - regular CHF 1149

Excluding VAT or import taxes. Import duties may apply. Worldwide shipping available. Shipped from Switzerland. Payment by Credit Card or PayPal.

IN STOCK - READY TO SHIP

If possible, pay by Credit Card (less fees).

The KHE ACS 4x4 FX enables to switch between 4 guitar amps and 4 speaker cabinets or load boxes. The ACS 4x4 FX has the special 'FX-Loop Switching & Master FX-Loop' feature, which allows to share effect pedals in the loops of all amps.

Switch & play any combination of amps and cabs instantly with a single push of a switch. No more moving heads around or plugging cables. Instant a/b testing and amp shootouts!

◾ Features: FX-Loop Switching, Attenuator Insert Loop, Dual-Cab Mode, MIDI Control
◾ Multiple units can be linked to expand the switching options
◾ One amp and up to two cabs can be active at time
◾ Compatible with heads, combos, tube- and solid state amps
◾ Amps are fully protected by load resistors and advanced safety functions
◾ No hum or noise, and no clicks or pops while switching!
◾ Steel enclosure in 19" one unit rack space (20cm depth)
◾ Power supply included
◾ Professional amp switcher, built in Switzerland
◾ 30 day money-back guarantee

Scroll down for detailed info on the KHE ACS 4x4FX!


——————————————————

CHF 1099.00

Excl. shipping, import taxes and VAT. Import duties may apply on import. Payment in CHF (Swiss Francs) by PayPal or Credit Card. Worldwide shipping out of Switzerland. UPS Express delivery option available.

IN STOCK - READY TO SHIP

If possible, pay by Credit Card (less fees).

The KHE ACS 8x4 enables to switch between 8 guitar amps and 4 speaker cabinets or load boxes. Switch & play any combination of amps and cabs instantly with a single push of a switch. No more moving heads around or plugging cables. Instant a/b testing and amp shootouts!

◾ Features: Attenuator Insert Loop, Dual-Cab Mode, MIDI Control
◾ Multiple units can be linked to expand the switching options
◾ Optional FX-Loop Switching with KHE AFX 8 extension
◾ One amp and up to two cabs can be active at time
◾ Compatible with heads, combos, tube- and solid state amps
◾ Amps are fully protected by load resistors and advanced safety functions
◾ No hum or noise, and no clicks or pops while switching!
◾ Steel enclosure in 19" one unit rack space (20cm depth)
◾ Power supply included
◾ Professional amp switcher, built in Switzerland
◾ 30 day money-back guarantee

Scroll down for detailed info on the KHE ACS 8x4!

——————————————————

CHF 1099.00

Excl. shipping, import taxes and VAT. Import duties may apply on import. Payment in CHF (Swiss Francs) by PayPal or Credit Card. Worldwide shipping out of Switzerland. UPS Express delivery option available.

IN STOCK & READY TO SHIP

If possible, pay by Credit Card (less fees).

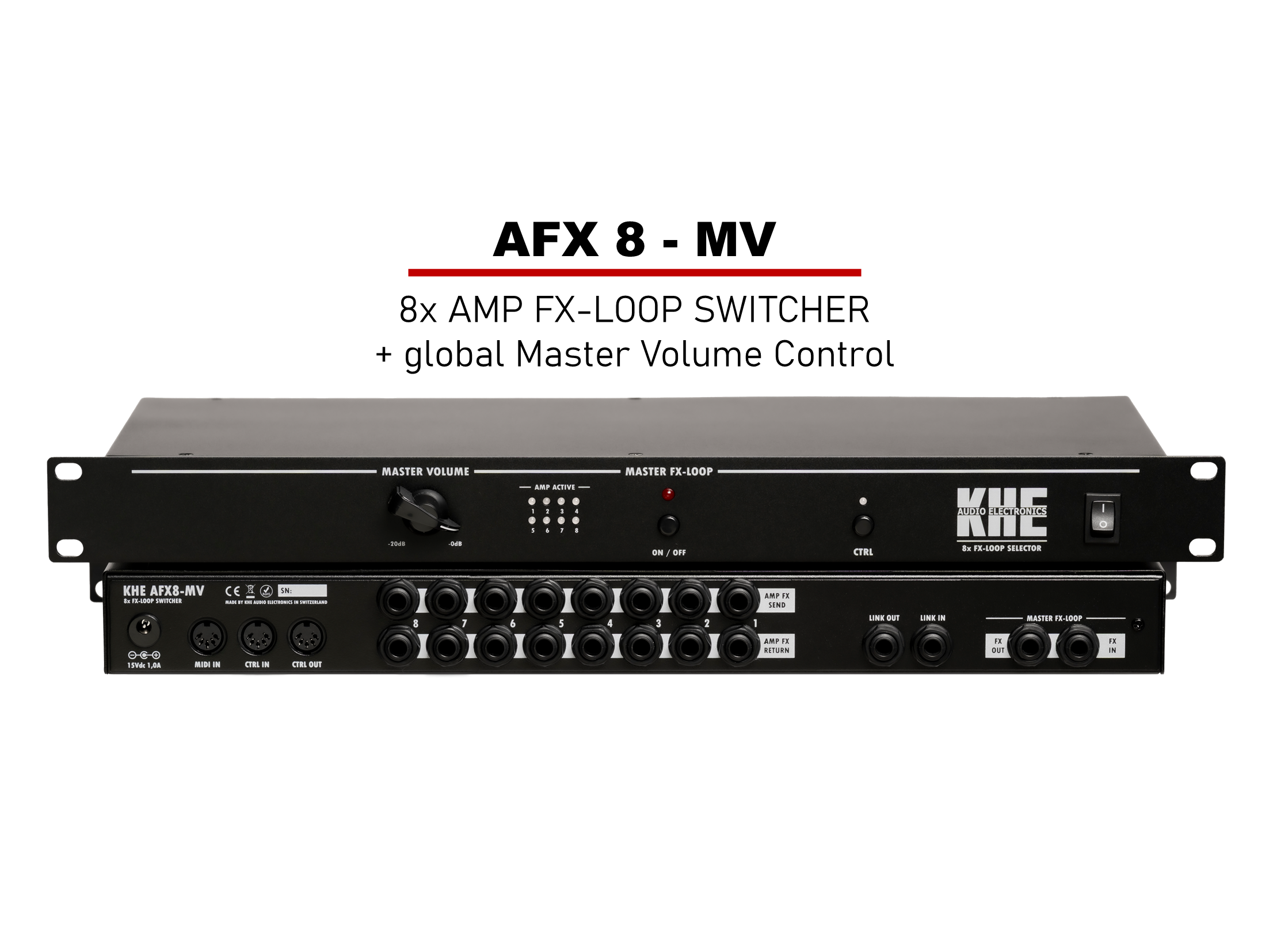

The AFX8-MV is an extension unit for the ACS8×4 and ASX8. It adds the Master-FX-Loop and Master Volume functionality to the 8x KHE amp switchers.

• Master-FX-Loop Switching: Enables to share effect pedals in the fx-loops of all amps: The fx-send and fx-return of each amp are connected to the AFX. The effect pedals are connected to the global Master-FX-Loop. The AFX now automatically switches the pedal to the activated amp fx-loop on the ACS8×4 or ASX8. The loop can be true-bypassed for each amp (memory function).

• Master Volume Control: Control & dim the master volume globally for all connected amps (fx-return volume, up to -20dB level reduction)

• These features only works with amp that have their fx-loop connected to the AFX. The AFX can not add a loop for amps that don’t have one.

• Compatible with all types of mono guitar effects: Delay, Reverb, Chorus, Noise Gates, EQ, Switching Systems, Multi-Effects, also in 4-Cable-Method.

• Linking: Multiple units can be daisy-chained to expand the switching channels

• Full MIDI Control

• Power adapter included, works worldwide

• 30 day money-back guarantee

• 5 year warranty

• Built in Switzerland

‍ ‍ User Manual (pdf)

——————————————————

CHF 699.00

Special introduction price - regular CHF 749

Excluding VAT or import taxes. Import duties may apply. Worldwide shipping available. Shipped from Switzerland. Payment by Credit Card or PayPal.

IN STOCK - READY TO SHIP

If possible, pay by Credit Card (less fees).
